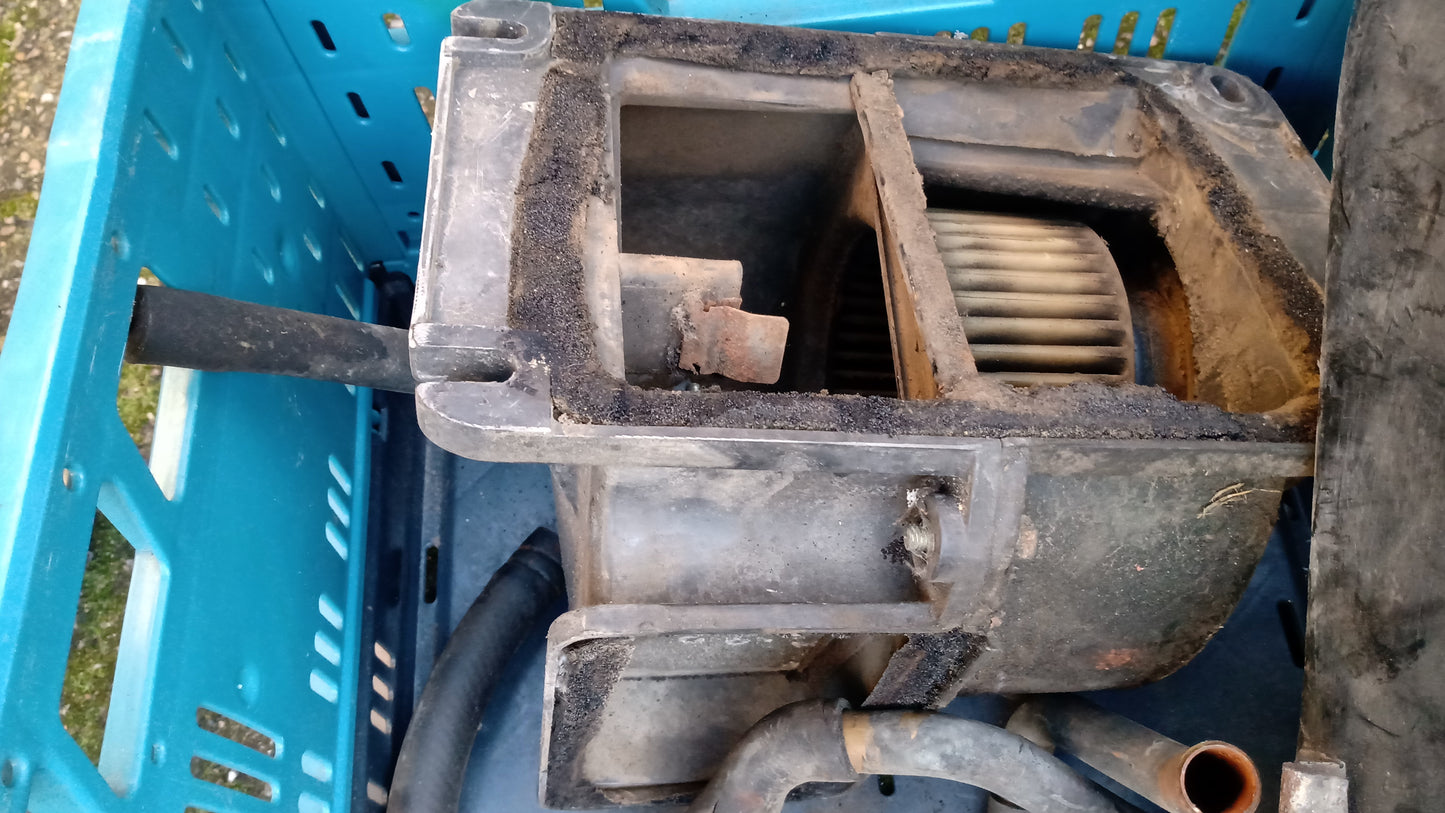

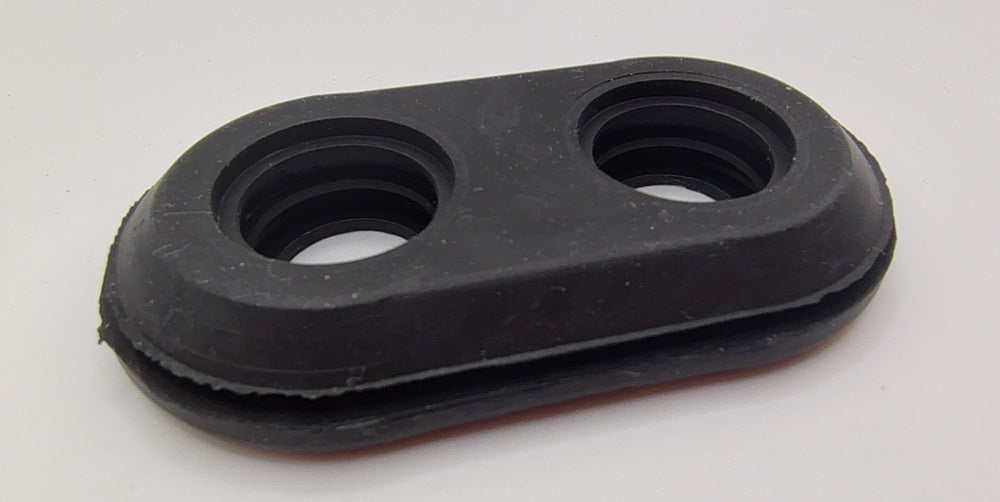

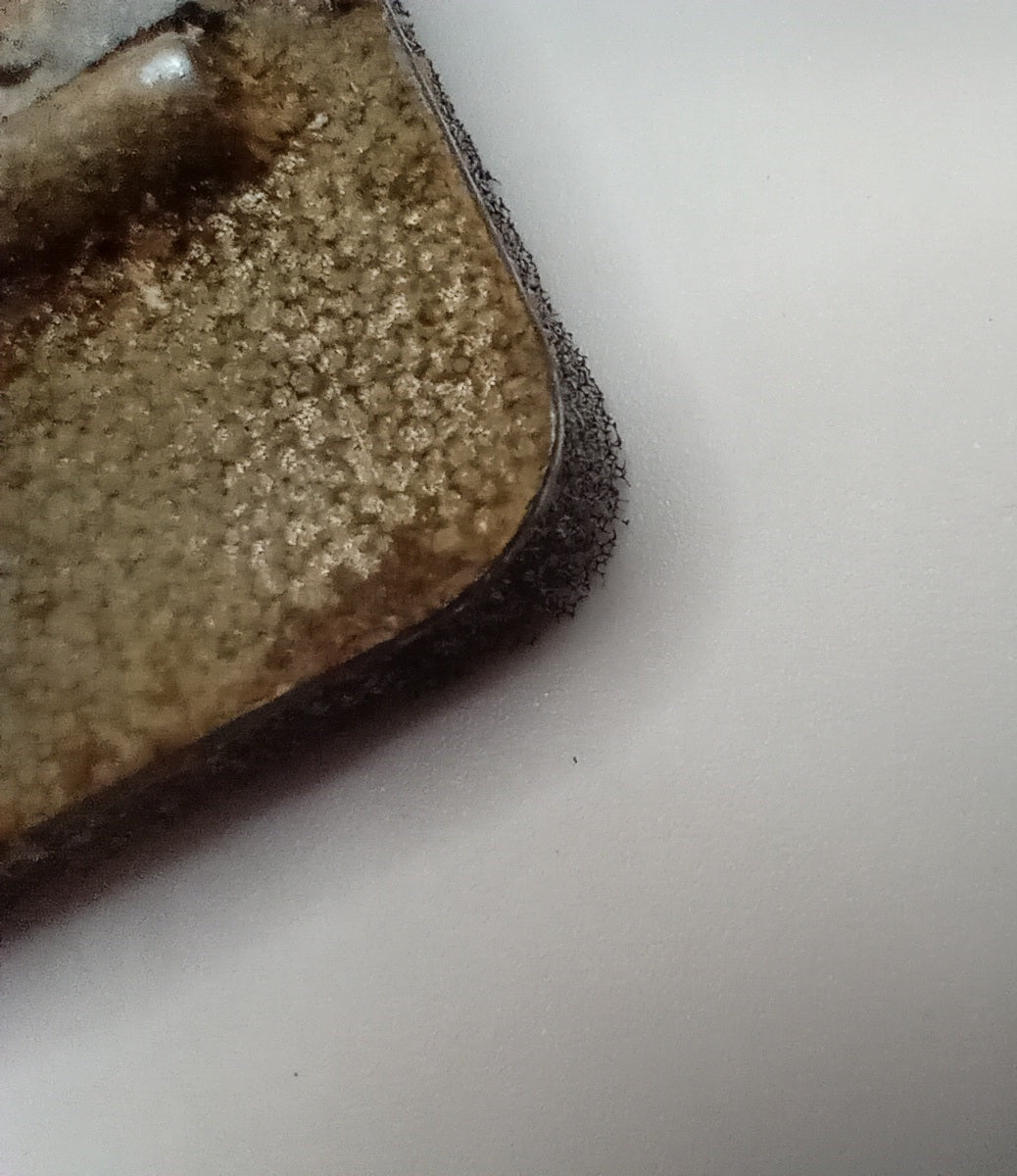

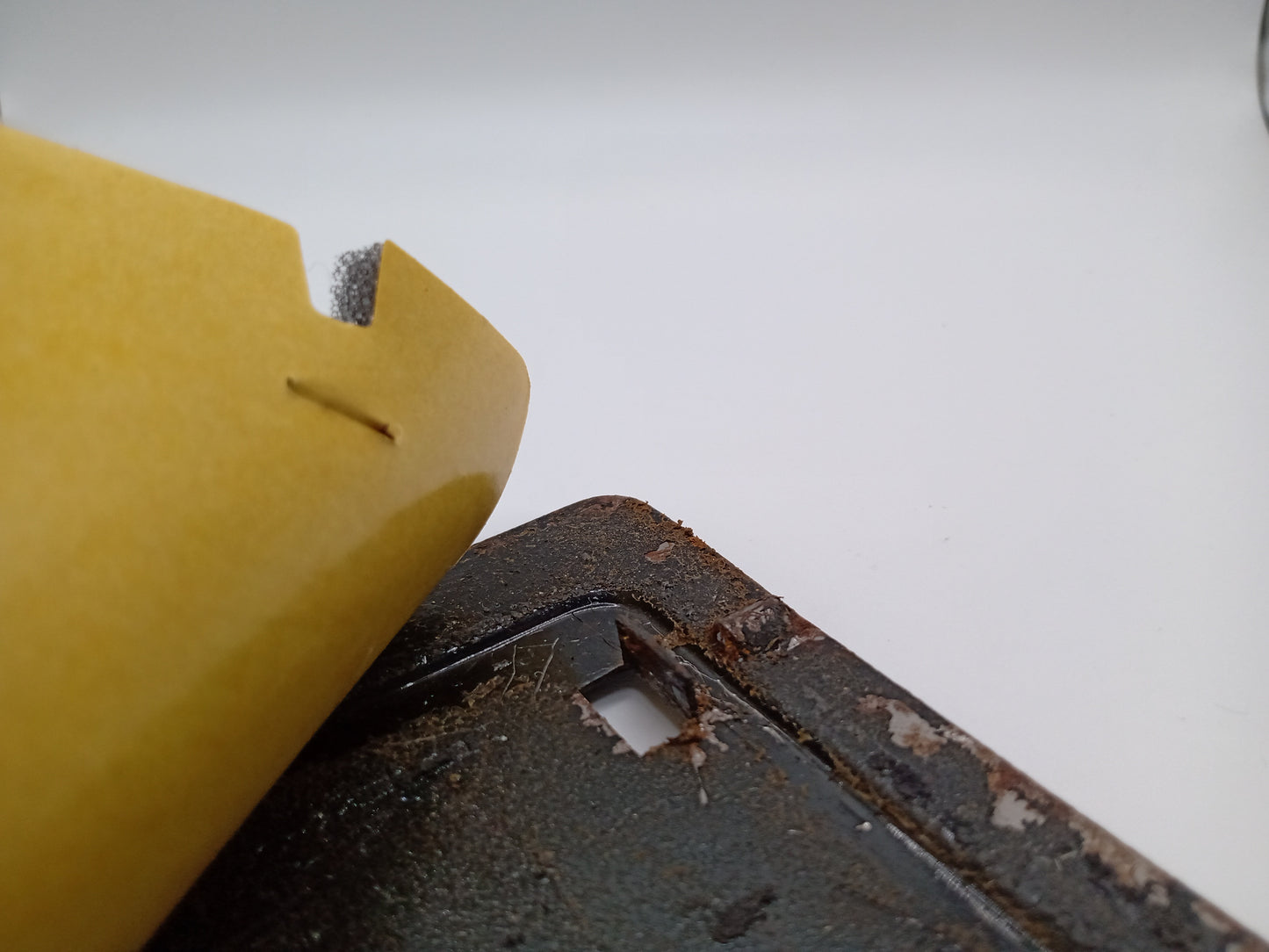

FREE SHIPPING This kit will be shipped with tracking. Kit of self-adhesive gaskets to seal the heater blower, air duct and heater. Simply peel the yellow paper and apply. After 40+ years the original seals have decomposed. Now you have the heater box out of the car it is best to replace the heater hose grommet in the firewall as well.

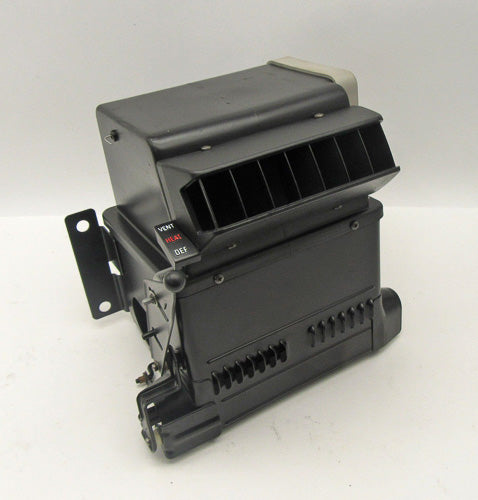

This kit is for the later model heater as in the photos. Build years September 1973 and later with blower part numbers 87130-60033 87130-60034 87130-60063 87130-60064 87130-60110 87130-60111 87130-60120 87130-60121 87130-60130 87130-60131
and heater box part numbers 87150-60035 87150-60036 87150-60065 87150-60066 87150-60068 87150-60069 87150-60110 87150-60111
Take your time and prepare well. The adhesive is strong and especially the grey soft foam needs to be applied correctly first time. No room for error !

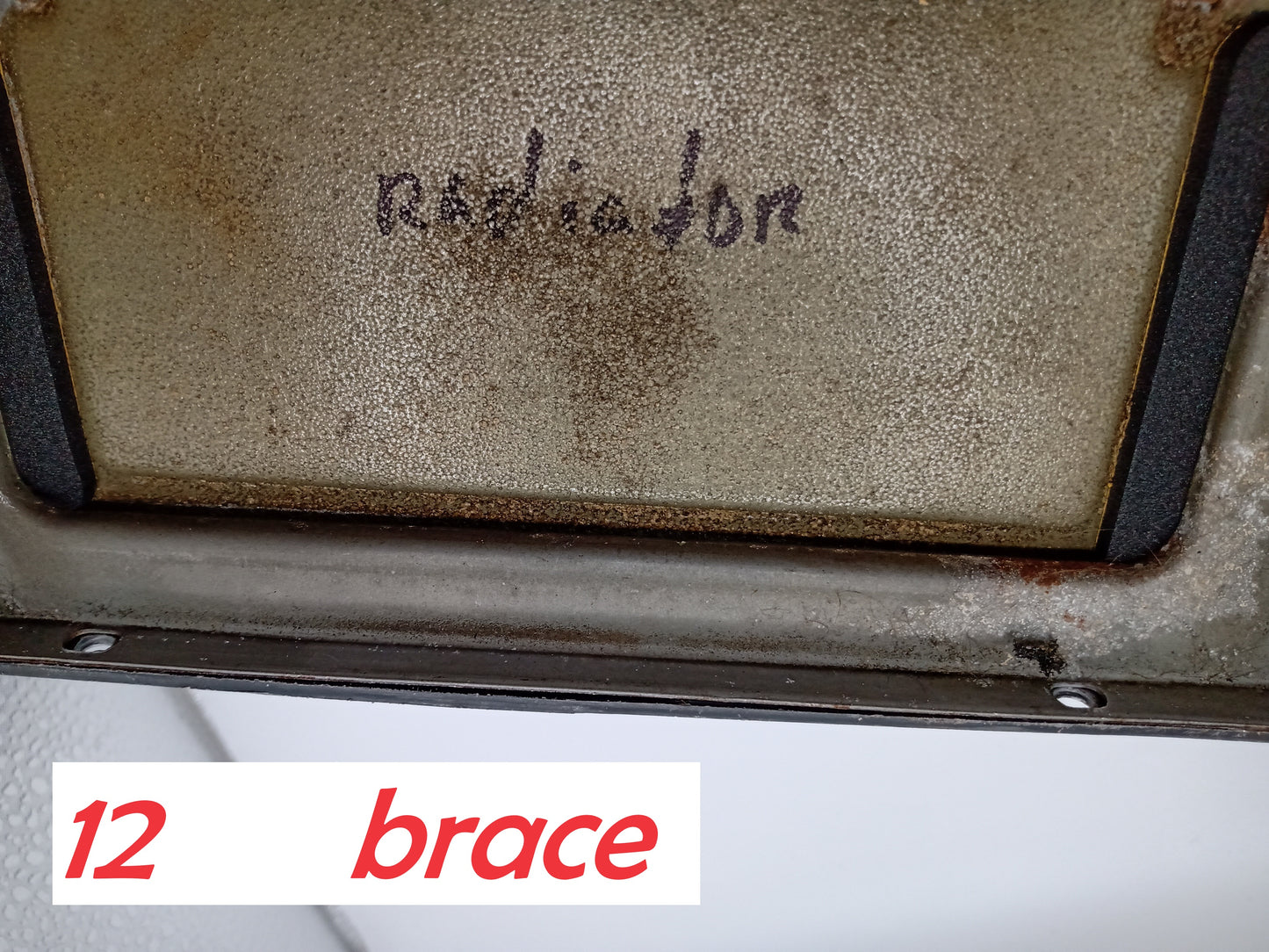

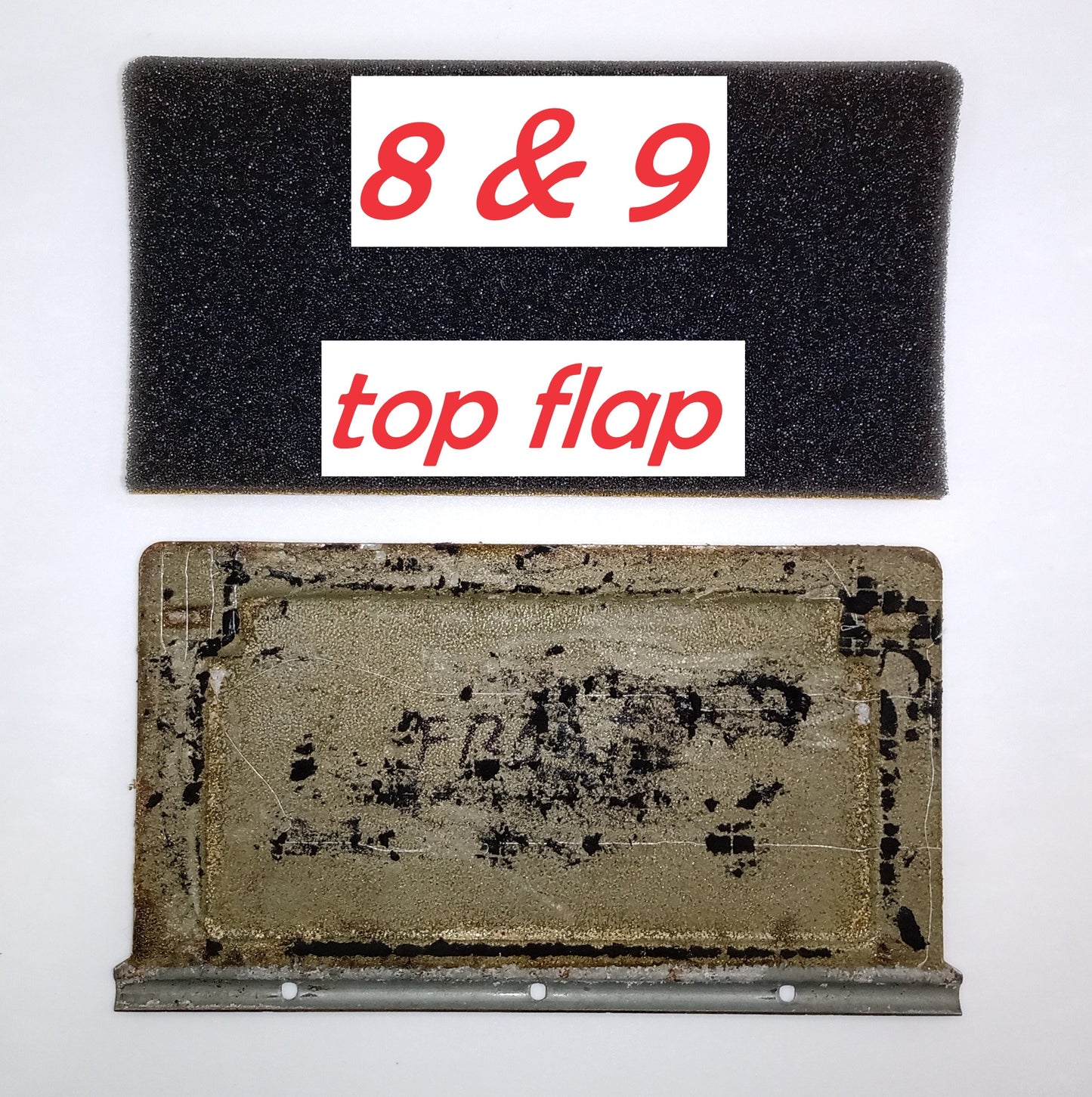

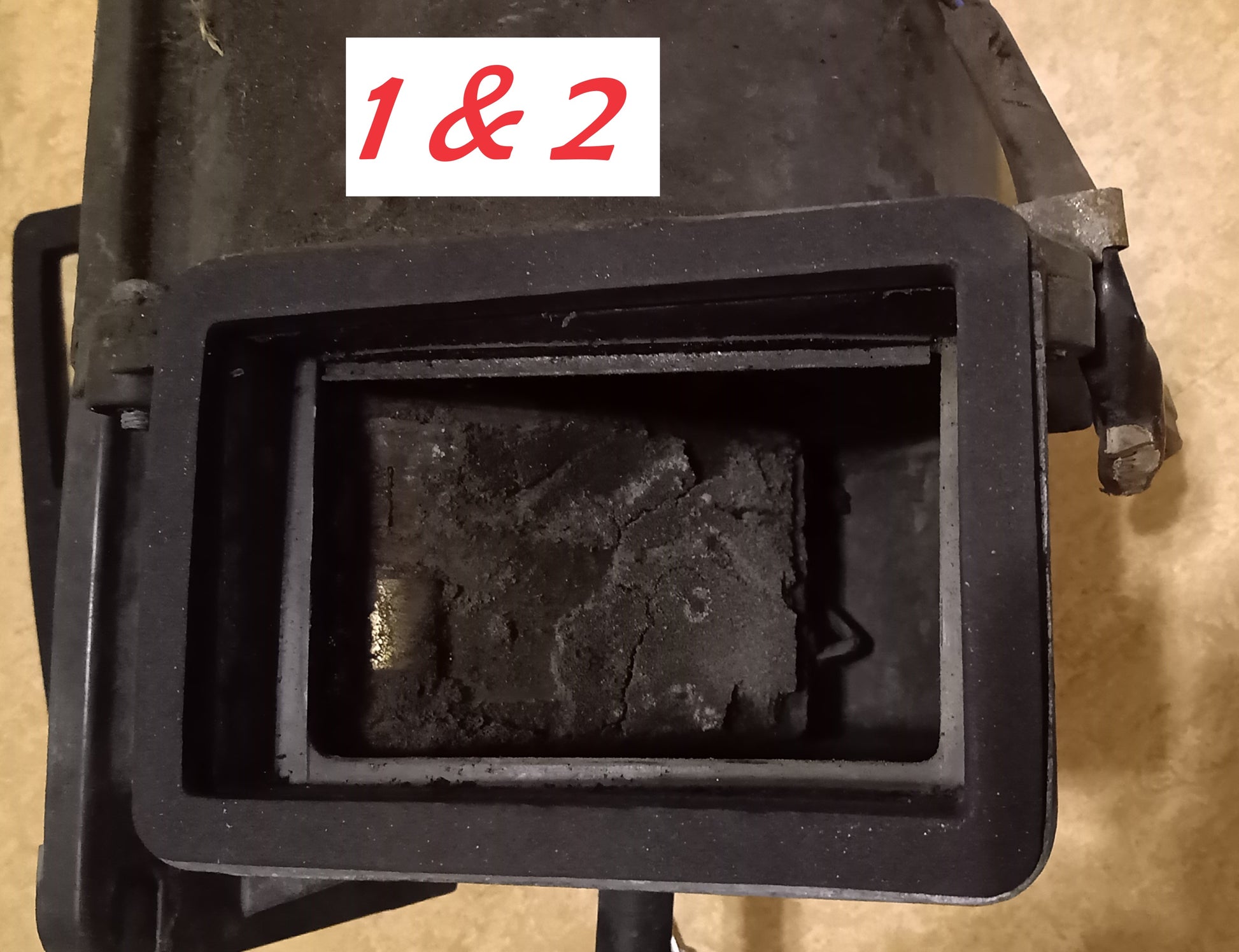

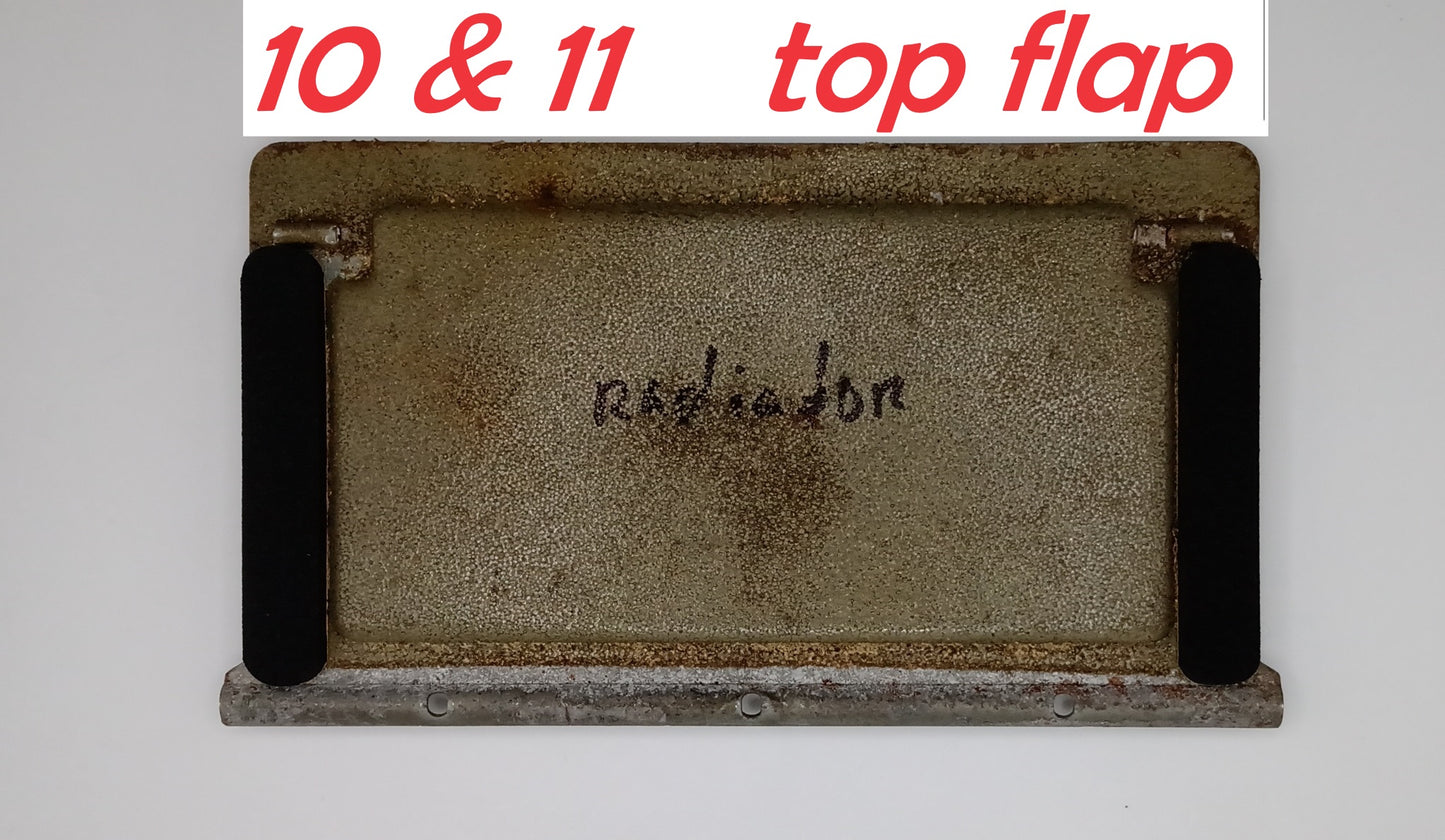

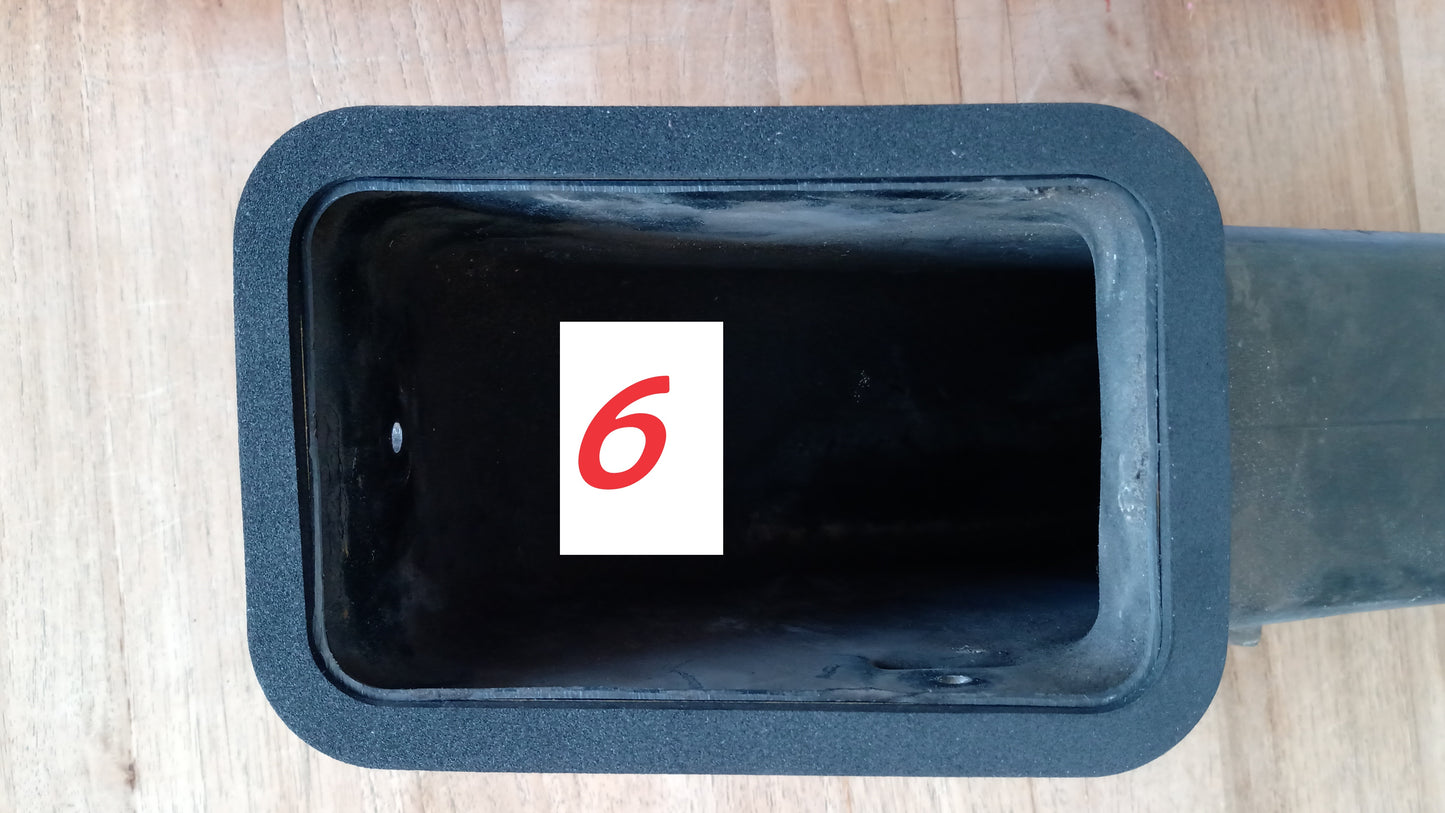

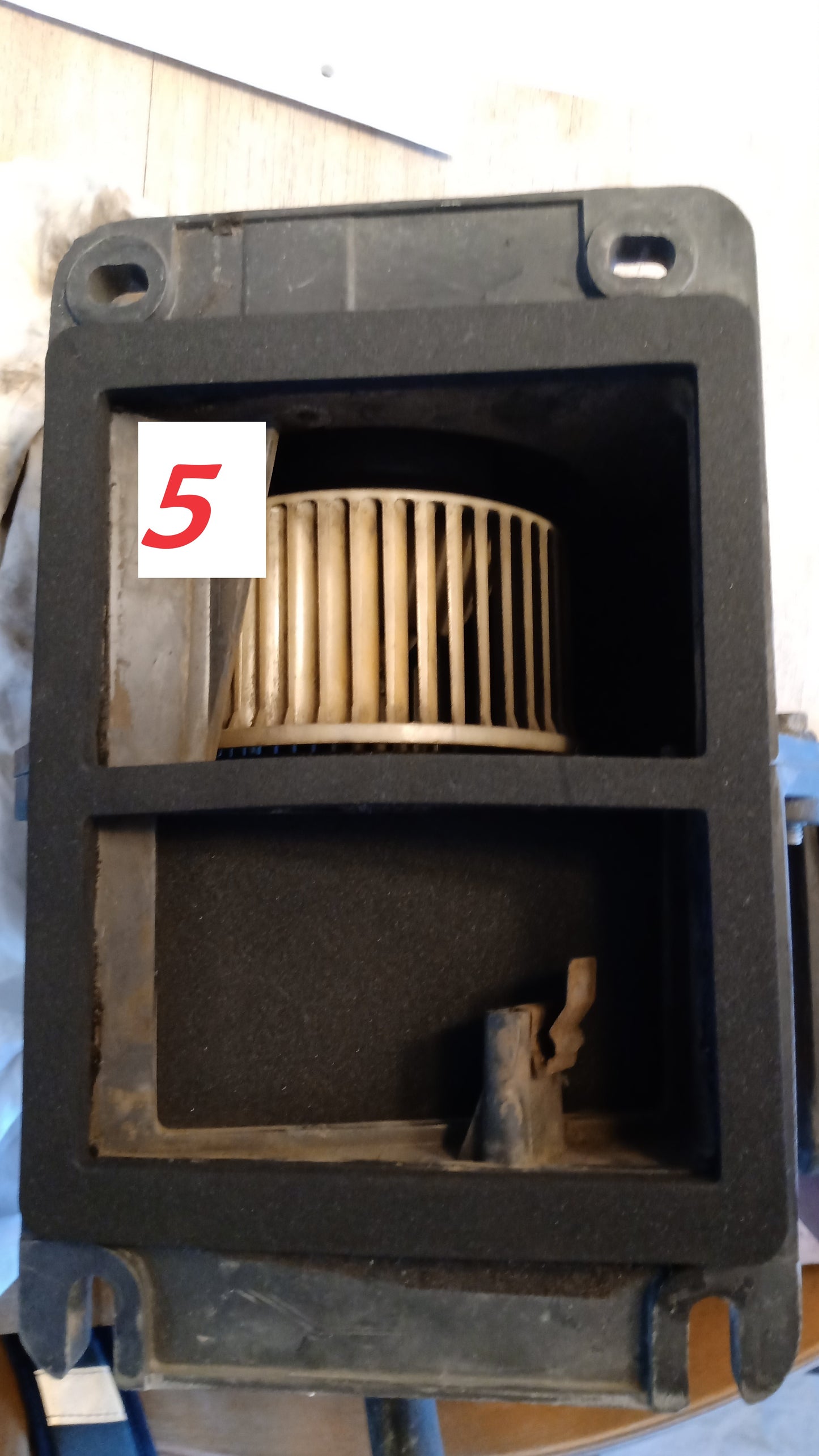

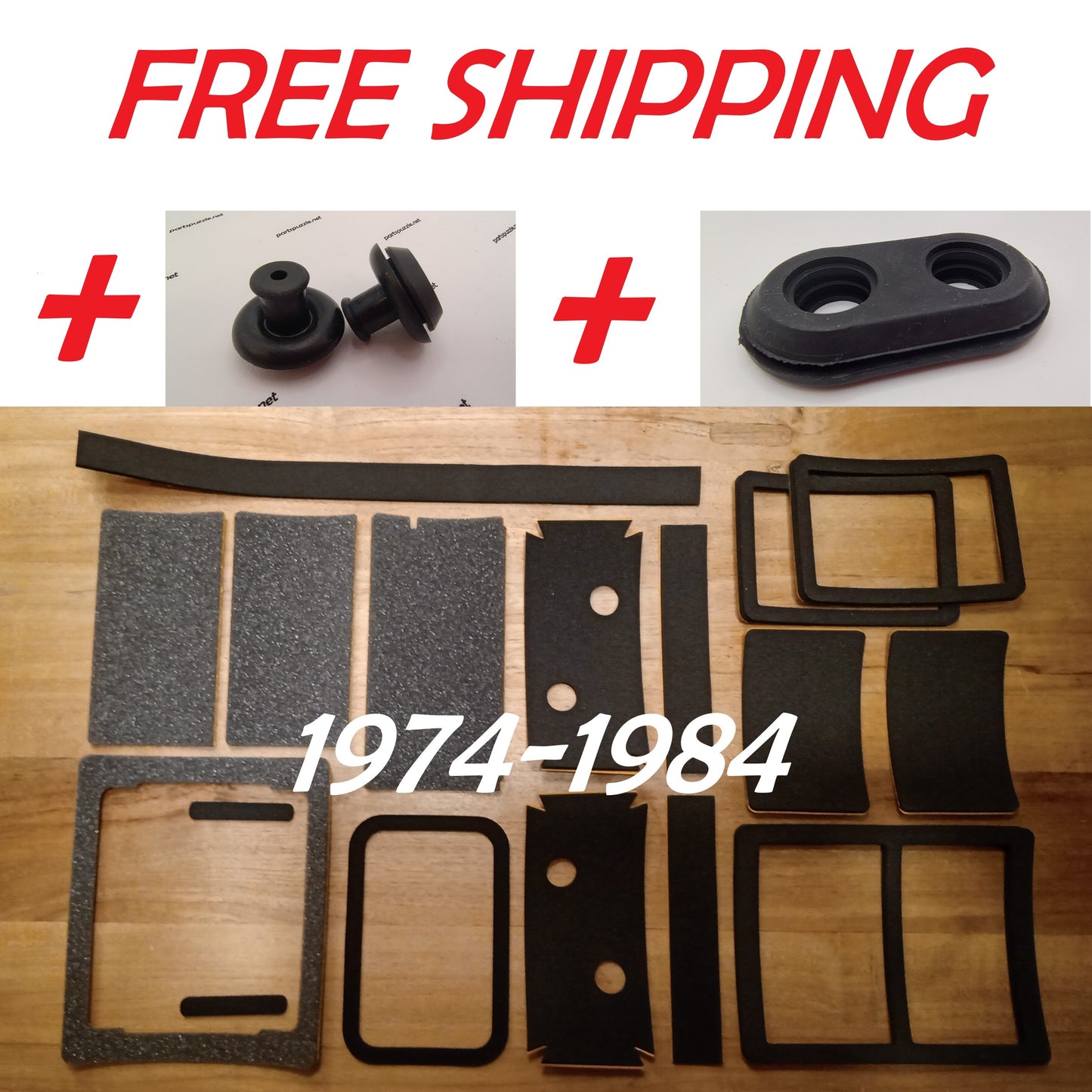

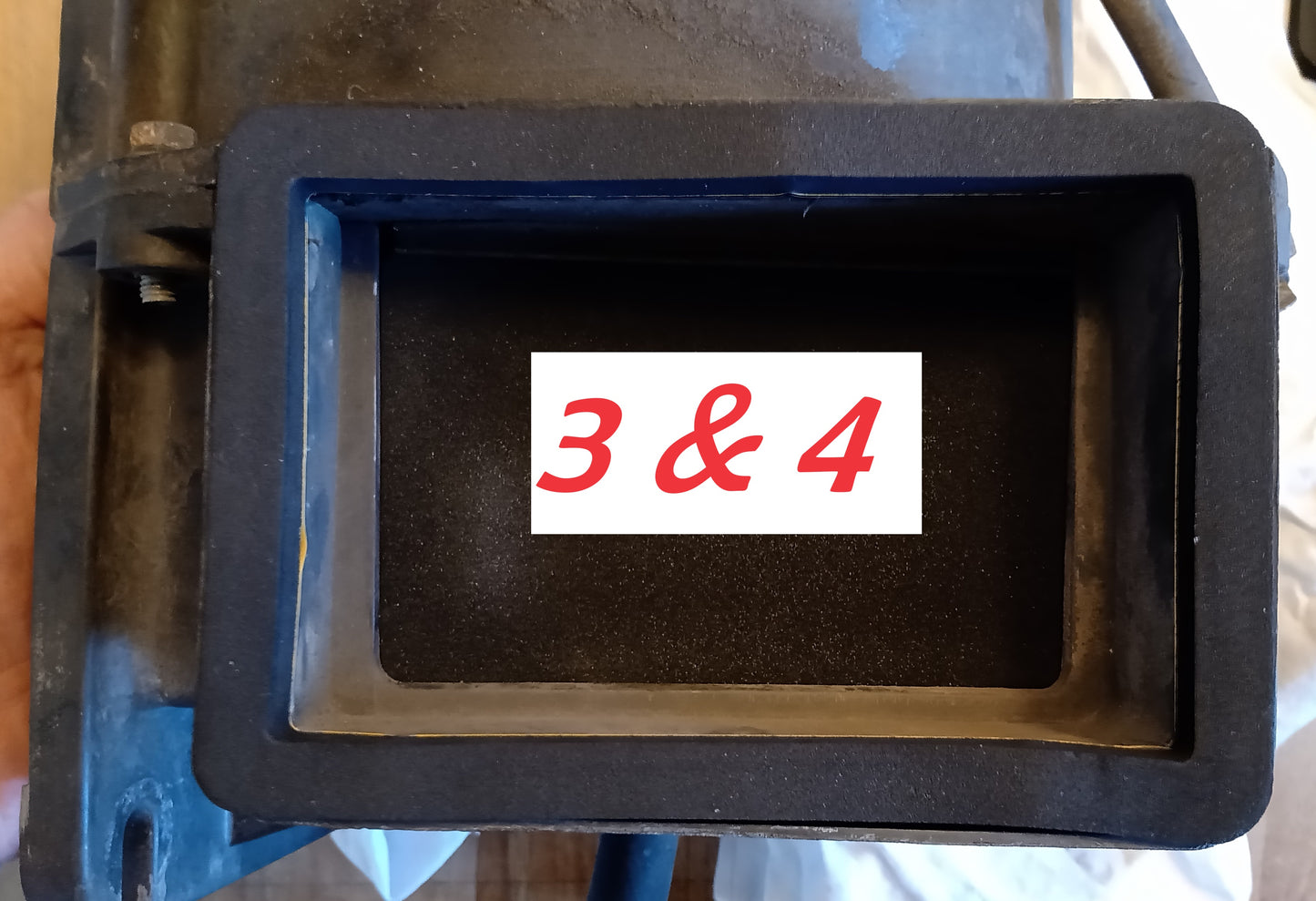

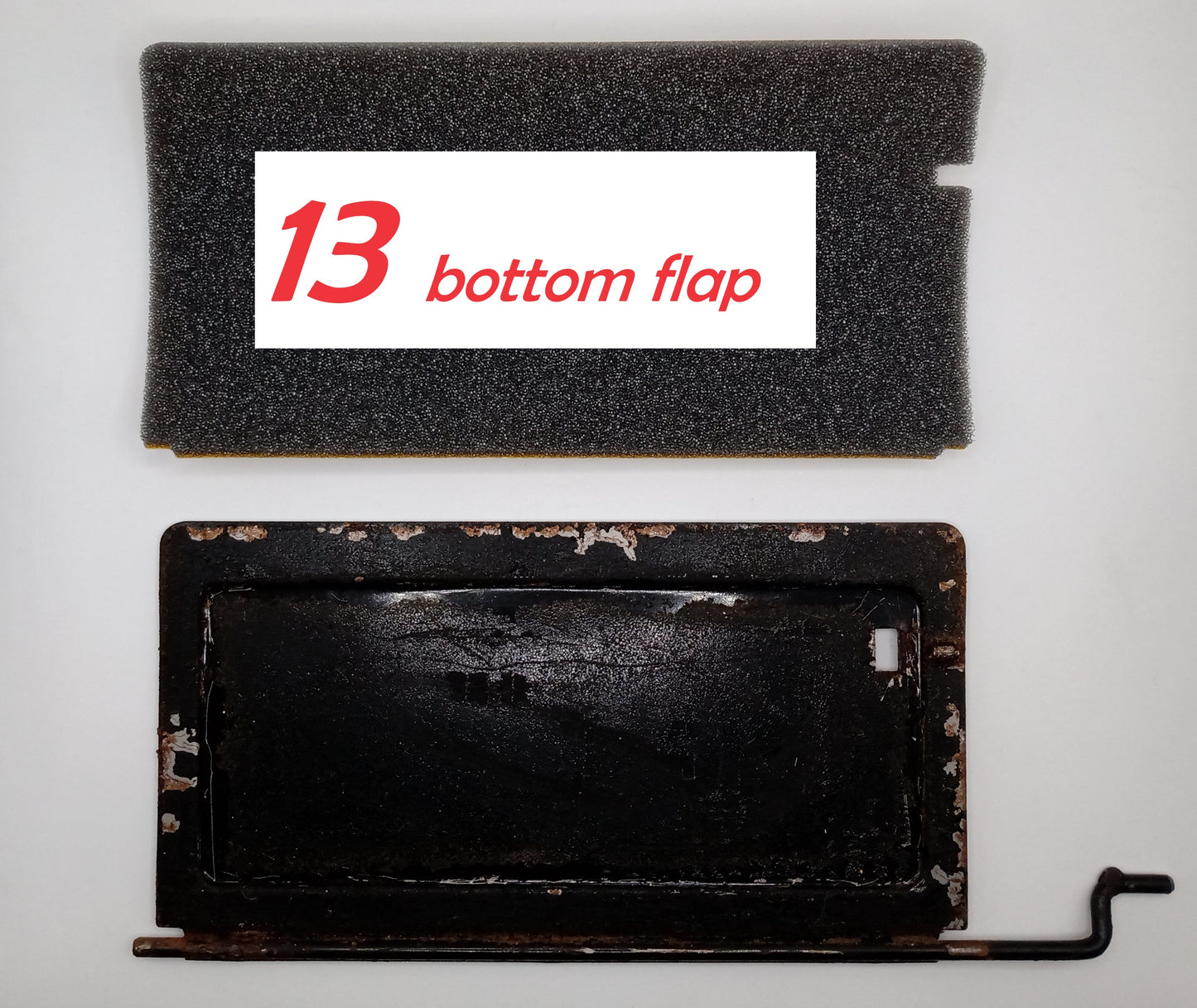

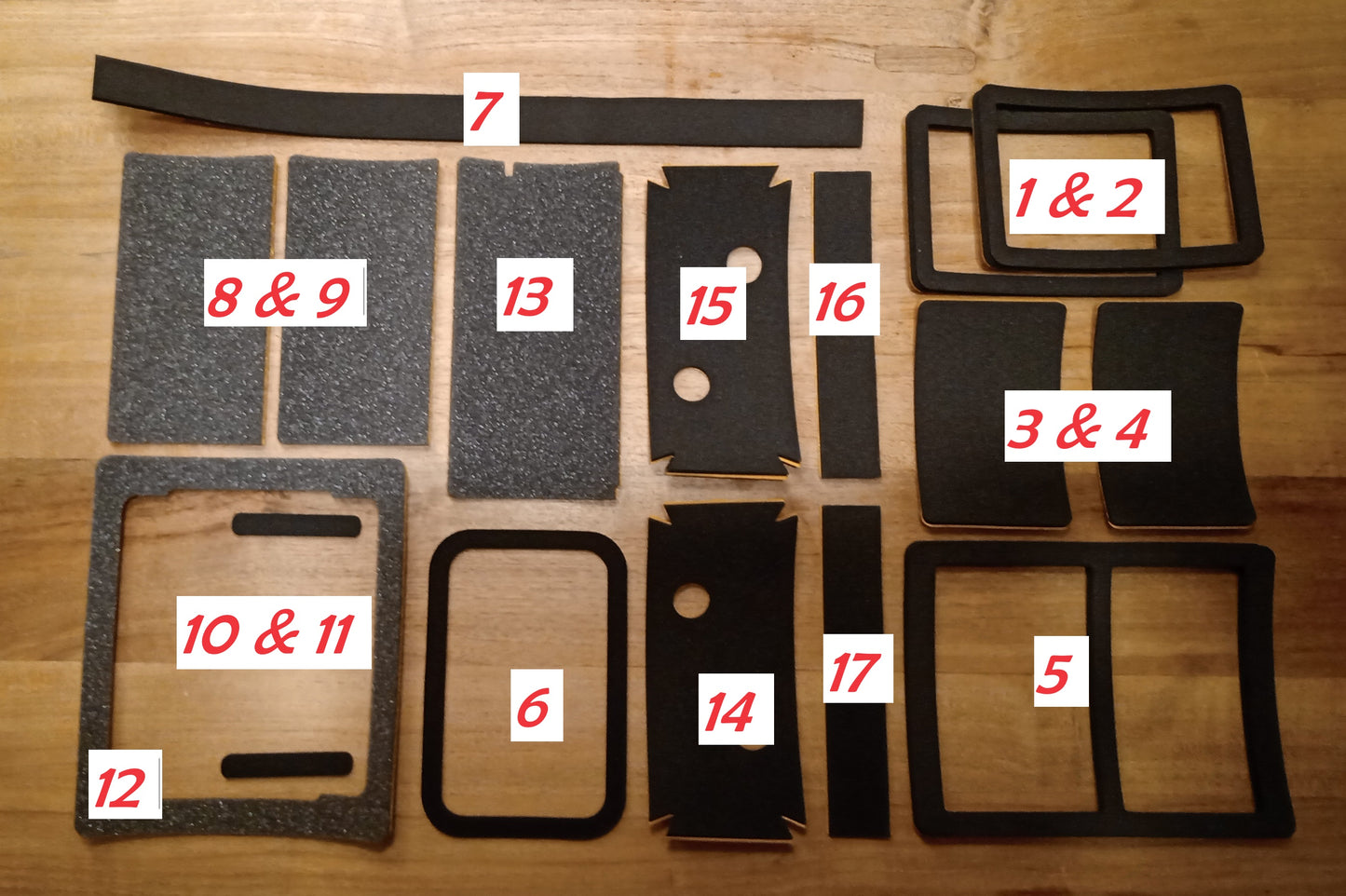

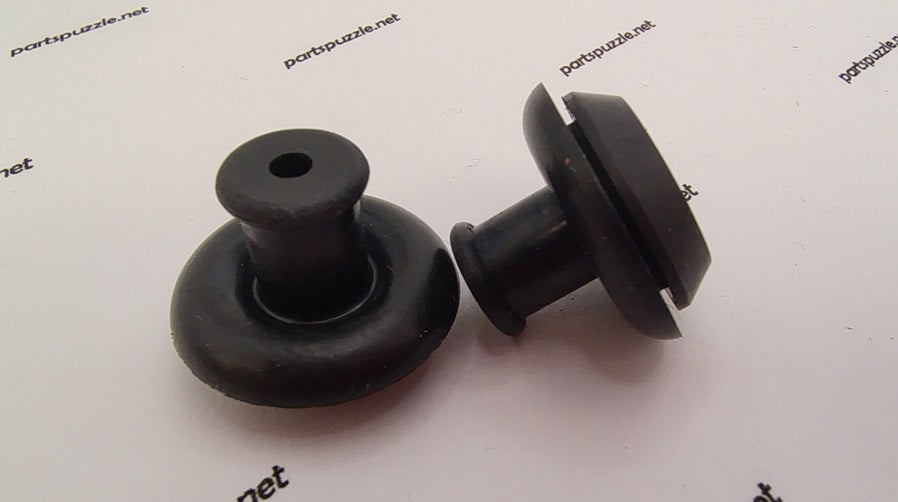

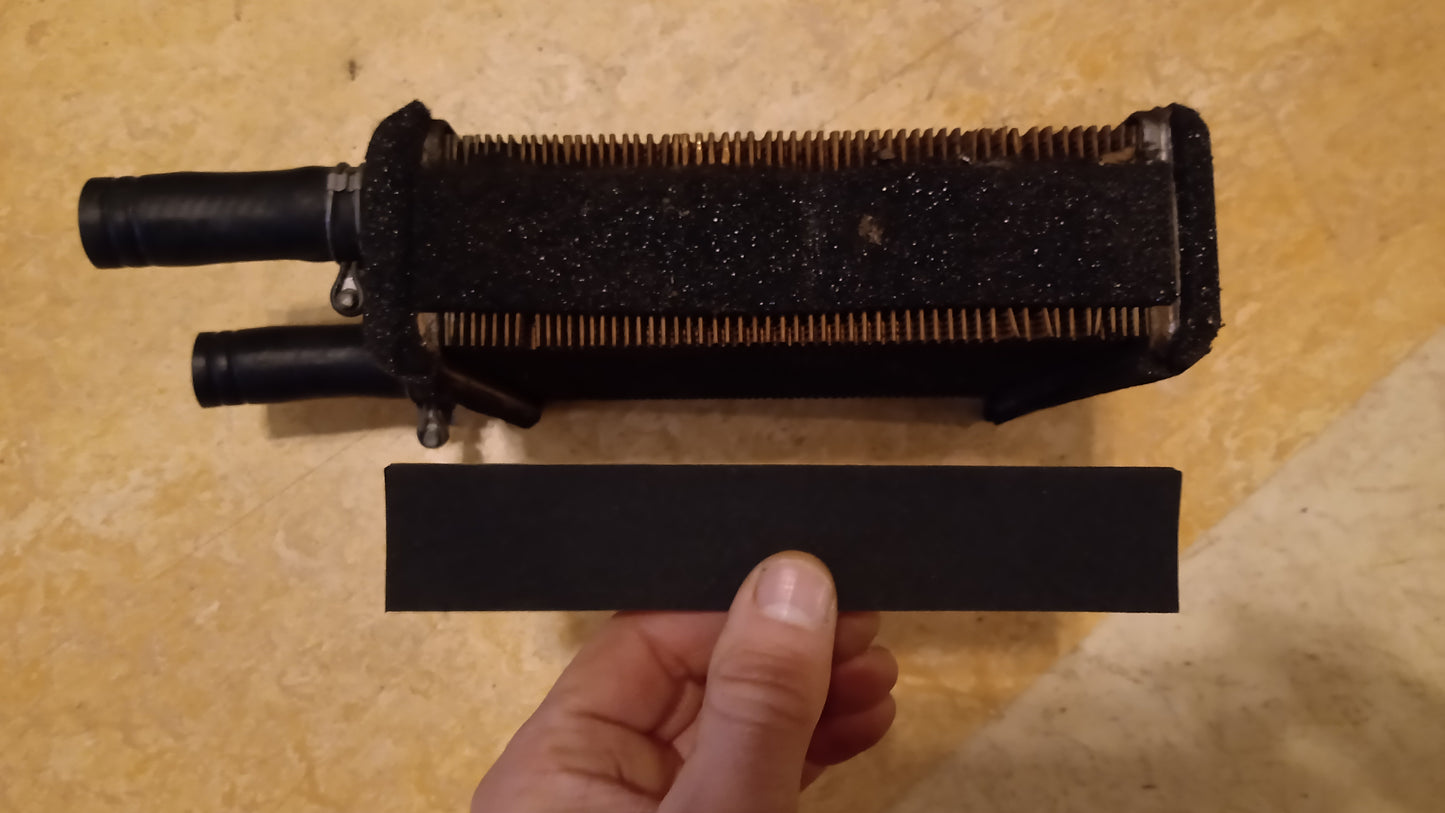

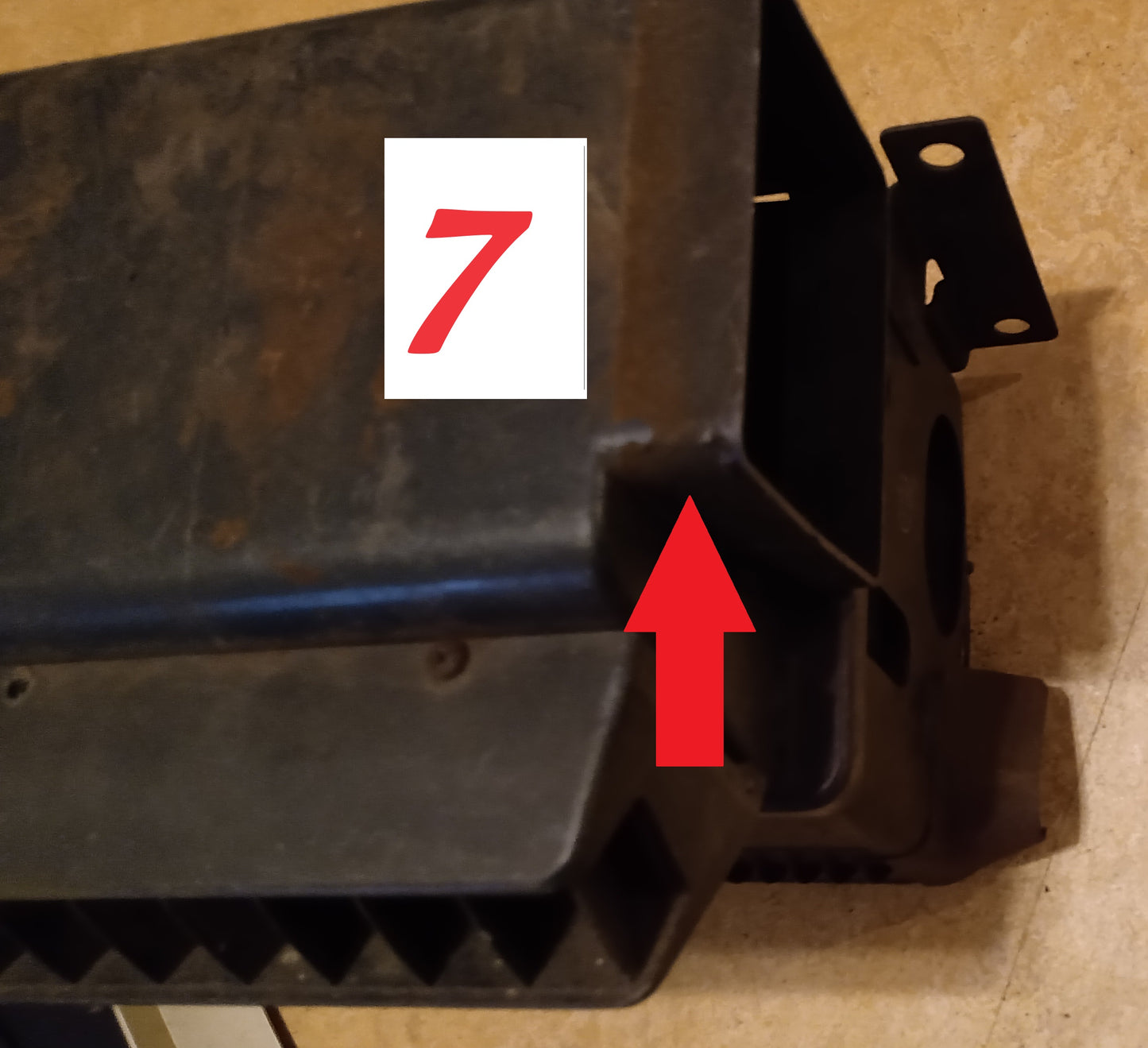

This kit contains: # new Genuine Toyota heater hose grommet for the firewall # 2 new Genuine Toyota grommets for the "WARM PULL" and "FRESH PULL" cables. #1 & 2 self-adhesive gaskets between the heater blower and the apron, 8mm water resistant EPDM. Between cars there is quiet a variance of the distance between the heater blower and the apron. Therefor 2 gaskets are included. If 1 does not suffice you can stack the second gasket on top of it. #3 & 4 self-adhesive gaskets for the valve, 4mm water resistant EPDM foam #5 self-adhesive gasket between the blower and the firewall, 8mm water resistant EPDM foam #6 self-adhesive gasket between the firewall and air duct. 4mm water resistant EPDM foam #7 self-adhesive gasket strip between the air duct and heater. 4mm heat resistant neoprene foam. #8 & 9 self-adhesive soft heat resistant gaskets for the top valve of the heater. This is the original set-up. You can choose to do without the gasket on the back of this valve and use the included 2 neoprene strips instead (#10 & 11). See photos. #12 self-adhesive soft heat resistant gasket between the grey metal part and the top half of the heater. #13 self-adhesive soft heat resistant gasket for the bottom valve of the heater #14, 15, 16 & 17 self-adhesive gaskets for the heater core. 4mm heat resistant neoprene foam. The side with the water connections should be done first !
