WARN SE206 4000 V-shaped dial selector seal rings for M series & premium series locking hubs
WARN SE206 4000 V-shaped dial selector seal rings for M series & premium series locking hubs
Couldn't load pickup availability

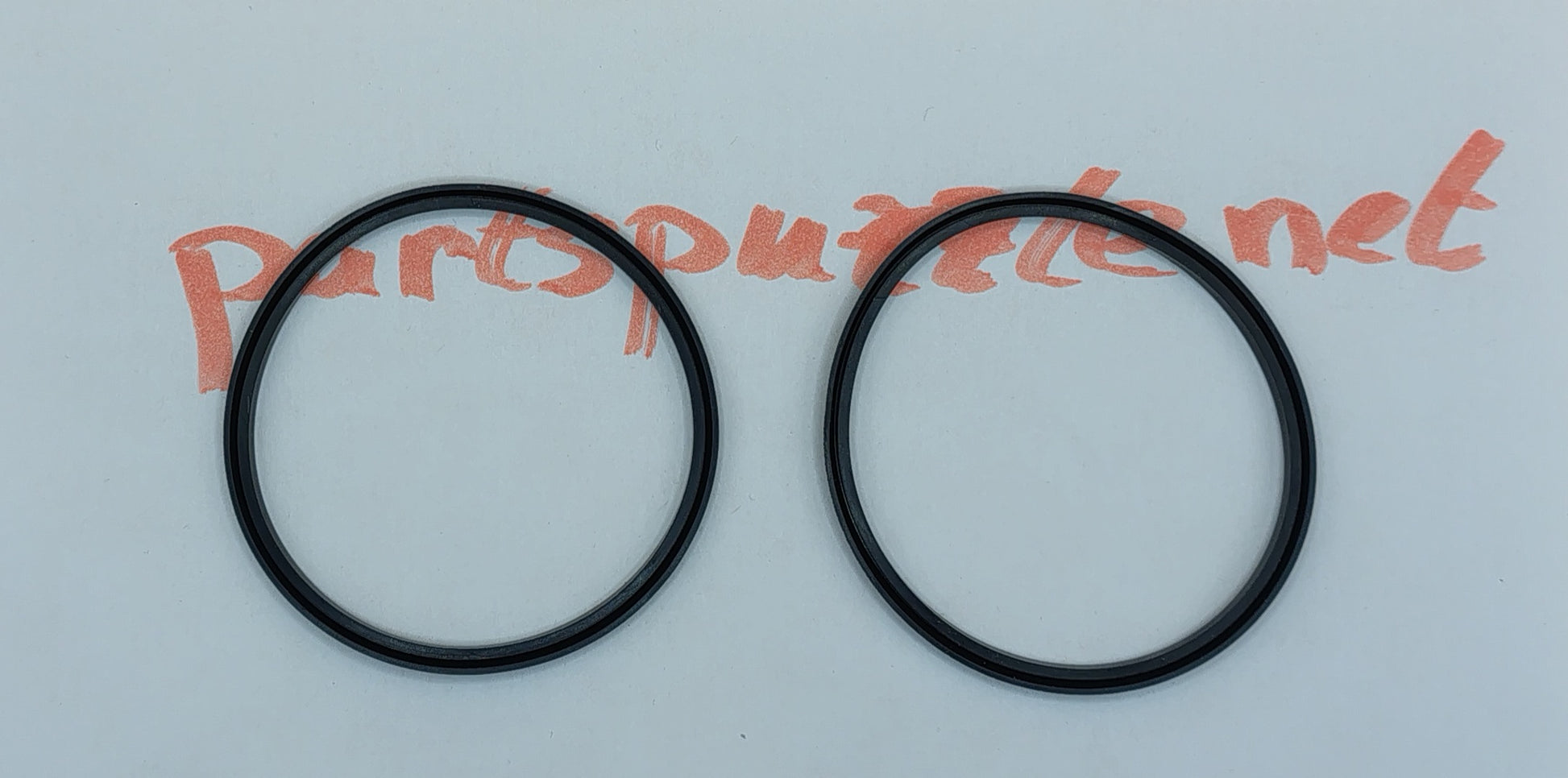

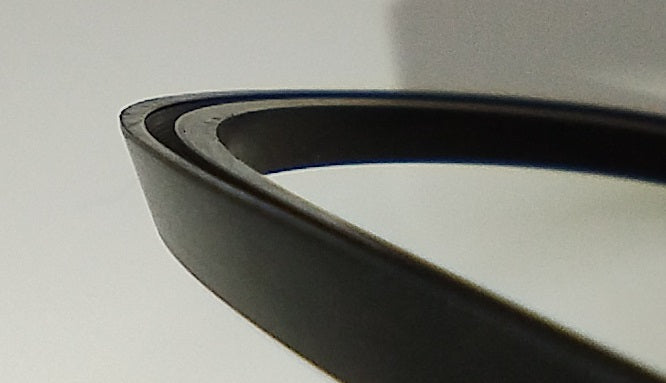

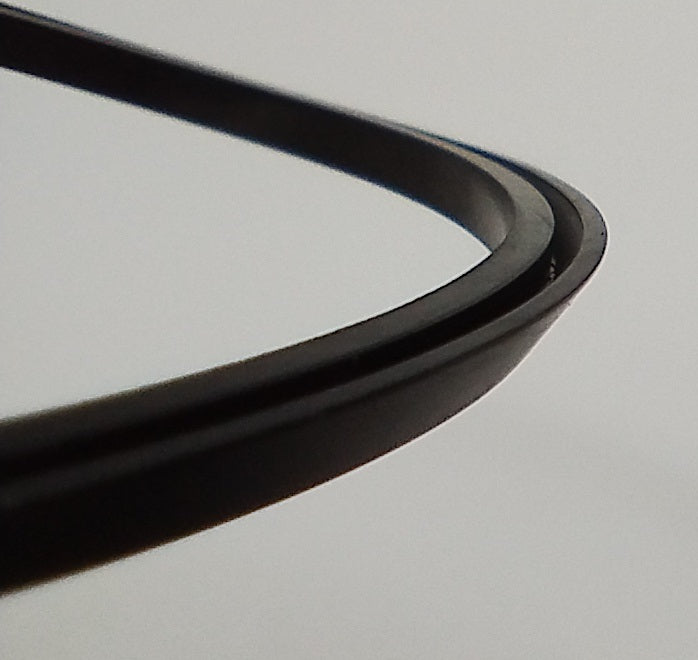

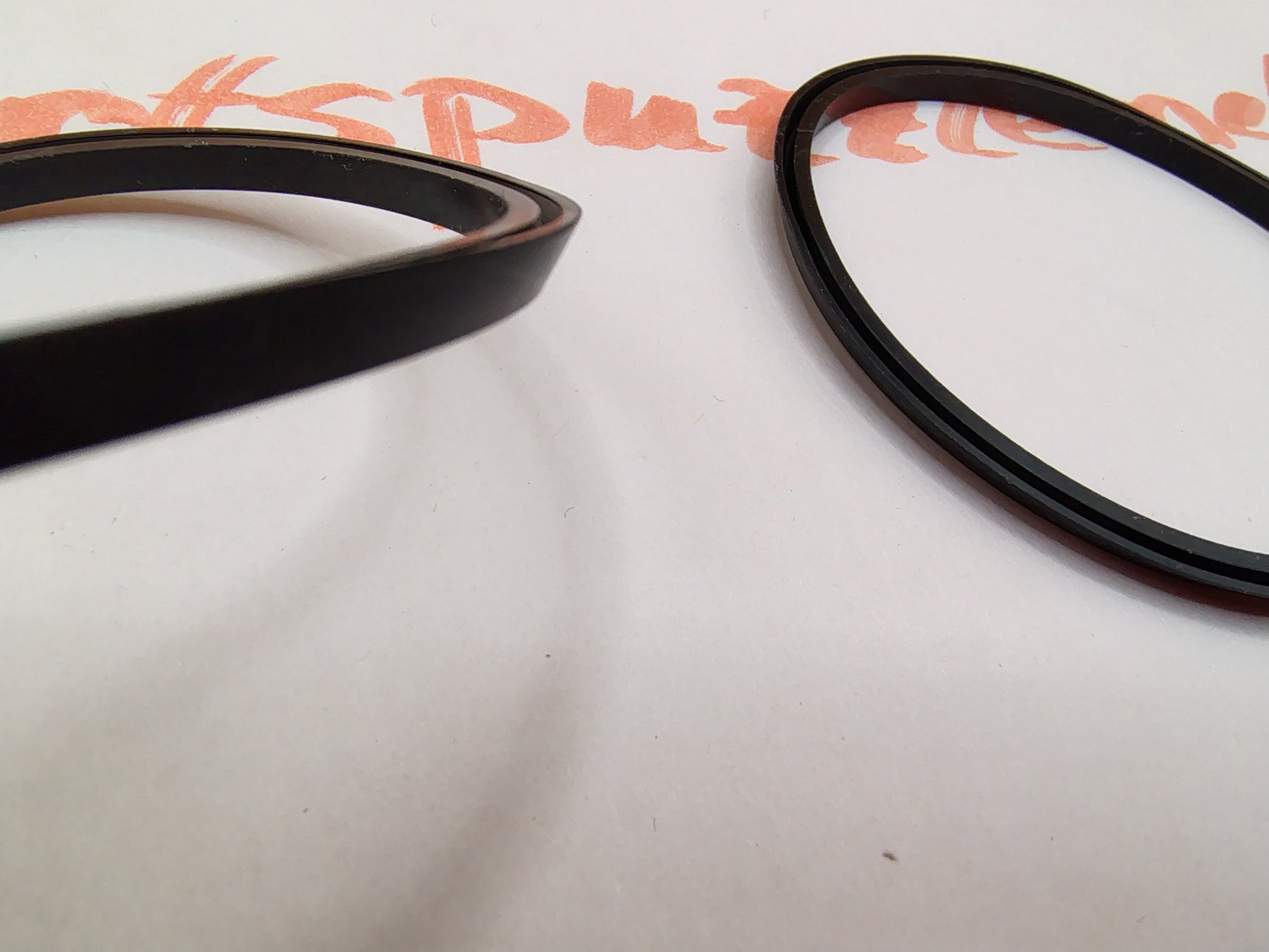

2x grooved ring to seal the dial selector on Warn Premium manual locking hubs and M series locking hubs.
The rings are a custom reproduction and are made of NBR rubber.

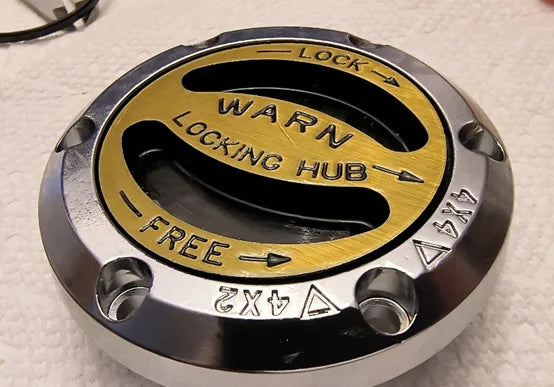

If the dial selectors on your hubs have the oval shape in the middle you need these special O-rings.
These rings are not available from Warn !
A regular O-ring or an X-ring will not seal or has so much friction it is very difficult to turn the selector.

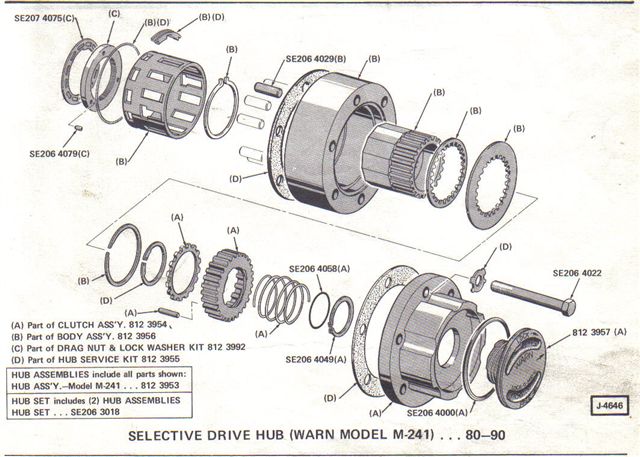

Warn part number SE206 4000
International Harvester part number 876 848 R1
These are used on Warn hubs:
M3
M6
M11
M54
M154
M178
M195
M196
M204
M241
M242
and others

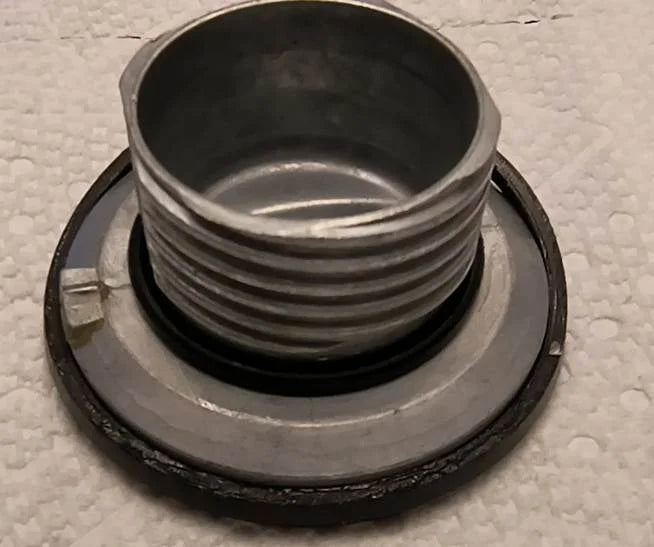

You most likely already know but the groove should face the outside world.

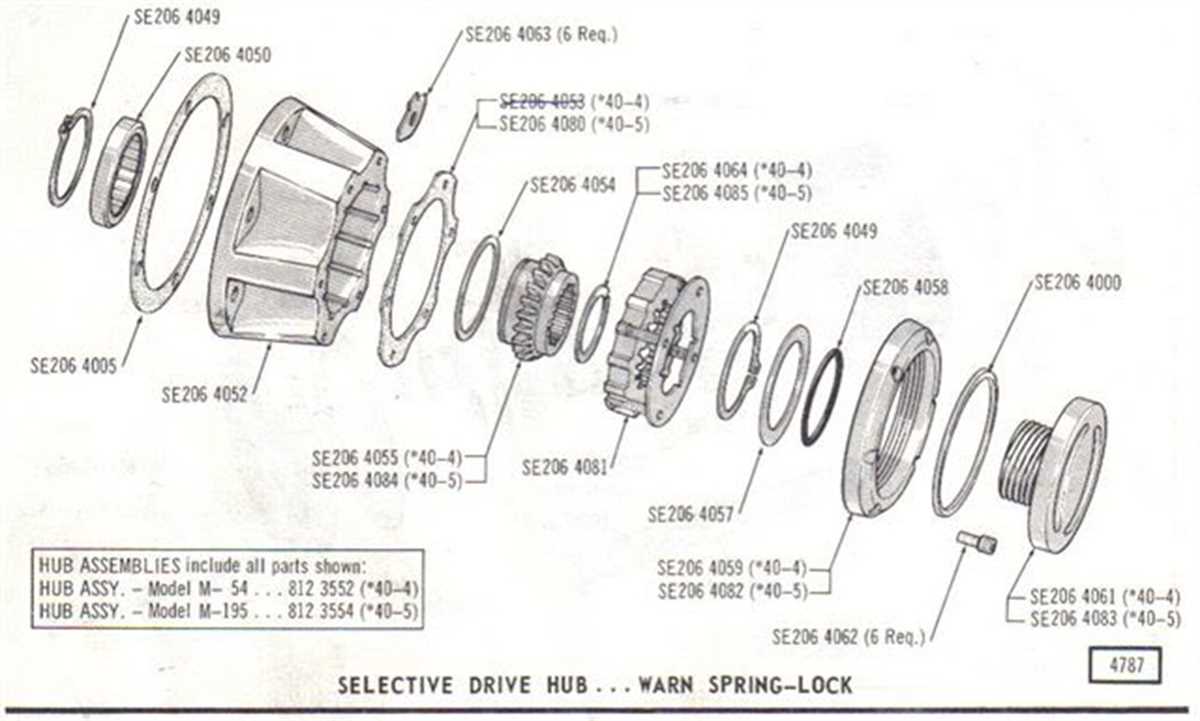

I also have the smaller SE206 4058 that is still being used on current Warn Premium models. 4058 is placed just under the faceplate of the selector.
